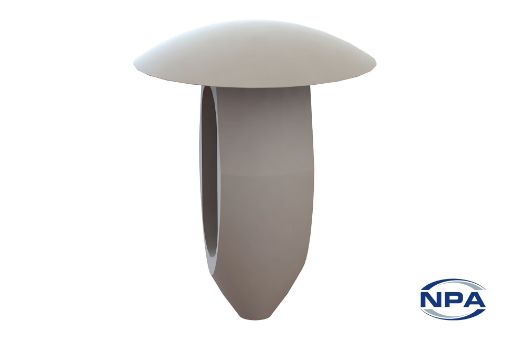

    Picture of Arrow Clip Standard Natural

    Arrow Clip Standard Natural

    Product Code: 0309
    Manufacturer: Heyco
    UOM: EACH
    Arrow clips easily secure panels into 6.4mm to 6.6mm holes. The nylon is soft enough to squeeze and remove the clip for reuse. Fit panels 3.2 to 4.7mm thick.
    Download Datasheet
    Login to purchase this item

    Products specifications

    DescriptionArrow Clip
    TypeStandard
    ColourNatural
    MaterialNylon 66
    Length14.6mm
    Height1.8mm
    Diameter7.4mm
    Mounting Hole Diameter6.4mm - 6.6mm
    Panel Thickness3.2mm - 4.7mm
    Minimum Temperature0°C
    Maximum Temperature85°C
    Flammability Rating94V-2
    Other informationHead Diameter 12.3mm
