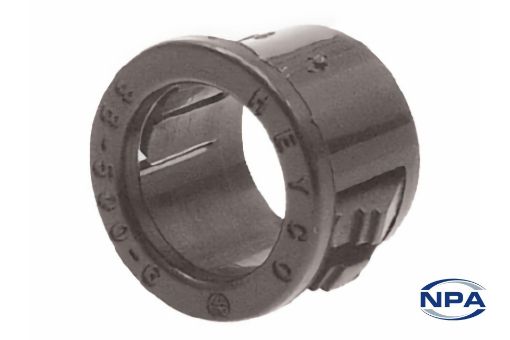

    Bushing Snap Black

    Product Code: 2049
    Manufacturer: Heyco
    UOM: EACH
    Snap-in bushings convert raw-edged holes to smooth, neat, insulated holes. Withstand a push back force of 35 lbs. (16kg).

    Products specifications

    DescriptionBushing
    TypeSnap
    ColourBlack
    MaterialNylon 66
    Height10.3mm
    Diameter14.5mm
    Mounting Hole Diameter12.7mm
    Internal Hole Diameter7.9mm
    Panel Thickness3.2mm
    Minimum Temperature-18°C
    Maximum Temperature105°C
    Flammability Rating94V-2
    CertificationsUL, CSA
