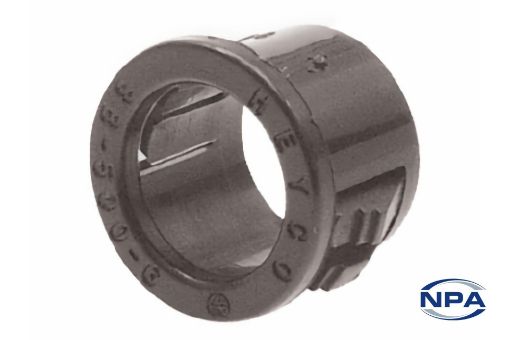

Bushing Snap Black

Product Code: 2053
Manufacturer: Heyco
UOM: EACH
Snap-in bushings convert raw-edged holes to smooth, neat, insulated holes. Withstand a push back force of 35 lbs. (16kg).
Products specifications
DescriptionBushing
TypeSnap
ColourBlack
MaterialNylon 66
Height10.3mm
Diameter14.5mm
Mounting Hole Diameter12.7mm
Internal Hole Diameter9.9mm
Panel Thickness3.2mm
Minimum Temperature-18°C
Maximum Temperature105°C
Flammability Rating94V-2
CertificationsUL, CSA
