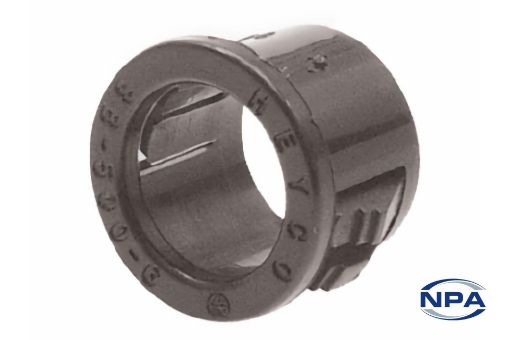

    Bushing Snap Black

    Product Code: 2273
    Manufacturer: Heyco
    UOM: EACH
    Converts raw-edged holes to smooth, neat, insulated holes. Locking fingers snap into holes with fingertip pressure. Withstands a push back force of 35 lbs. (16kg). Insulates and mechanically protects electrical and telecommunications cables, tubing, hose, and utility lines. Moulded from Nylon 6/6. Recognized under the Component Program of Underwriters' Laboratories File E15331. Certified by the Canadian Standards Association File 8919. Flammability Rating: 94V-2. Temperature Range: -.4°F (-18°C) to 221°F (105°C).

    Products specifications

    DescriptionBushing
    TypeSnap
    ColourBlack
    MaterialNylon 66
    Height11.5mm
    Diameter44.2mm
    Mounting Hole Diameter41.3mm
    Internal Hole Diameter33.3mm
    Panel Thickness3.2mm
    Minimum Temperature-18°C
    Maximum Temperature105°C
    Flammability Rating94V-2
    CertificationsUL, CSA
