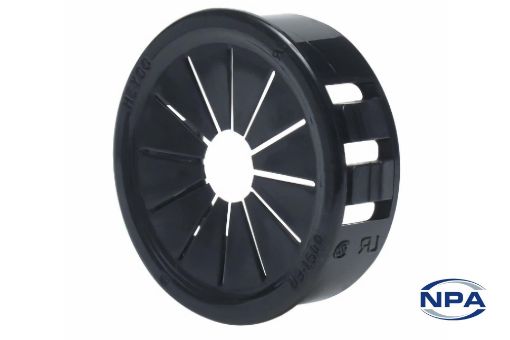

    Bushing Universal Black

    Product Code: 3122
    Manufacturer: Heyco
    UOM: EACH
    Flexible shutters adjust to accommodate and support any shape. Absorbs vibration; cushions and insulates cables, tubing, hoses or shafts. Supports thicker panels of 6.4m . Fingertip pressure snap-locks the bushing into its mounting hole. Moulded from Nylon 6/6. ASTM D-4066. Recognized under the Component Program of Underwriters' Laboratories File E15331. Certified by the Canadian Standards Association File 8919. Flammability Rating: 94V-2. Temperature Range: -.4°F (-18°C) to 221°F (105°C).

    Products specifications

    DescriptionBushing
    TypeUniversal
    ColourBlack
    MaterialNylon 66
    Height14.2mm
    Diameter40.9mm
    Mounting Hole Diameter38.1mm
    Internal Hole Diameter26.9mm
    Panel Thickness6.4mm
    Flammability Rating94V-2
