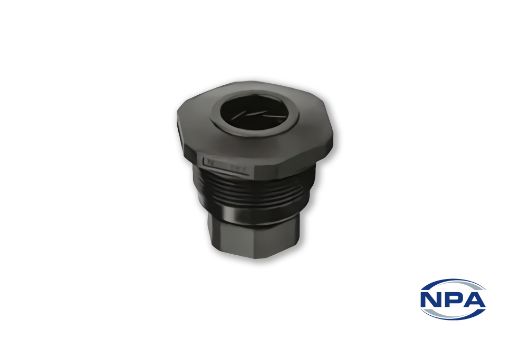

Picture of Cable Gland Liquid Tight Black

Cable Gland Liquid Tight Black

Product Code: LP3231
Manufacturer: Heyco
UOM: EACH
Low profile NPT ½" cable glands rated for IP 68 sealing. Fit cables from 5.3mm to 8mm.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionCable Gland
TypeLiquid Tight
ColourBlack
MaterialNylon 66
Length24.9mm
Width24.9mm
Mounting Hole Diameter22.2mm
Internal Hole Diameter12.5mm
Thread PitchNPT ½"
Cable Size Minimum5.3mm
Cable Size Maximum8mm
IP RatingIP 68
Minimum Temperature-40°C
Maximum Temperature115°C
Flammability Rating94V-2
CertificationsUL, CSA
Other informationHead Height 5.8mm
