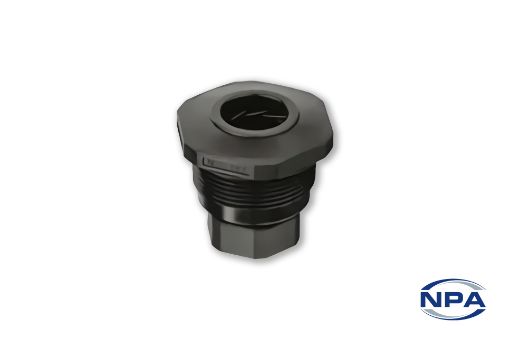

Picture of Cable Gland Liquid Tight Black

Cable Gland Liquid Tight Black

Product Code: LP3234
Manufacturer: Heyco
UOM: EACH
Low profile NPT ¾" cable glands rated for IP 68 sealing. Fit cables from 6.4mm to 11.4mm.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionCable Gland
TypeLiquid Tight
ColourBlack
MaterialNylon 66
Length27.9mm
Width32.5mm
Mounting Hole Diameter28.2mm
Internal Hole Diameter12.5mm
Thread PitchNPT ¾"
Cable Size Minimum6.4mm
Cable Size Maximum11.4mm
IP RatingIP 68
Minimum Temperature-40°C
Maximum Temperature115°C
Flammability Rating94V-2
CertificationsUL, CSA
Other informationHead Height 8.9mm
