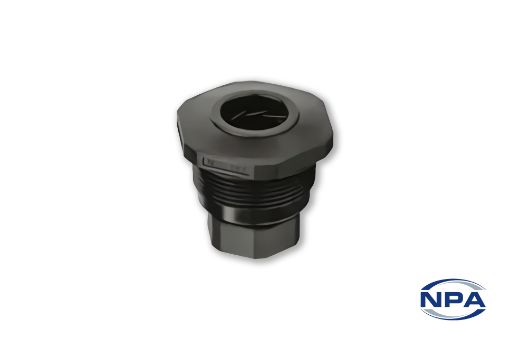

Picture of Cable Gland Liquid Tight Black

Cable Gland Liquid Tight Black

Product Code: LP3317
Manufacturer: Heyco
UOM: EACH
Low profile NPT 1½" cable glands rated for IP 68 sealing. Fit cables from 15mm to 25.4mm.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionCable Gland
TypeLiquid Tight
ColourBlack
MaterialNylon 66
Length41.9mm
Width56.9mm
Mounting Hole Diameter48.8mm
Thread PitchNPT 1½"
Cable Size Minimum15mm
Cable Size Maximum25.4mm
IP RatingIP 68
Minimum Temperature-40°C
Maximum Temperature115°C
Flammability Rating94V-2
CertificationsUL, CSA
Other informationHead Height 13mm
