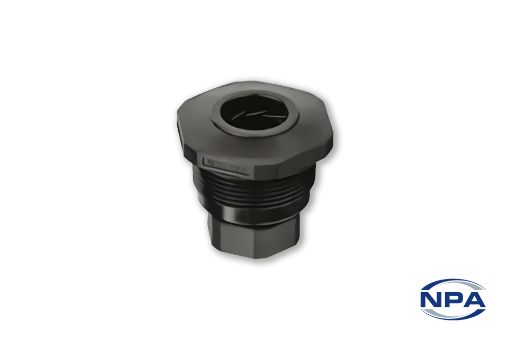

Picture of Cable Gland Liquid Tight Black

Cable Gland Liquid Tight Black

Product Code: LP4524
Manufacturer: Heyco
UOM: EACH
Low profile NPT 1¼" cable glands rated for IP 68 sealing. Fit cables from 11mm to 17.9mm.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionCable Gland
TypeLiquid Tight
ColourBlack
MaterialNylon 66
Length36.6mm
Width50mm
Mounting Hole Diameter42.7mm
Thread PitchNPT 1¼"
Cable Size Minimum11mm
Cable Size Maximum17.9mm
IP RatingIP 68
Minimum Temperature-40°C
Maximum Temperature115°C
Flammability Rating94V-2
CertificationsUL, CSA
Other informationHead Height 10.7mm
