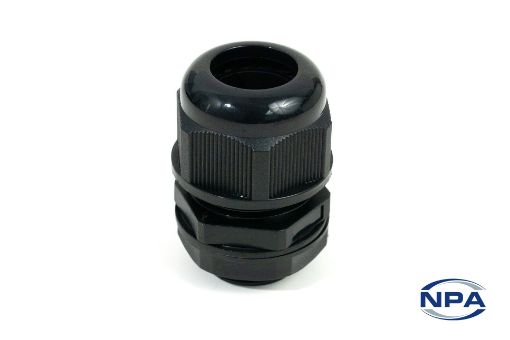

Cable Gland Multi-Hole Black

Product Code: 43003-5-3-INS

Manufacturer: NPA

UOM: EACH

M25 threaded nylon cable glands with five holes for 3mm - 6mm cables. Supplied complete with locknut and washer. **Compatible with all multi-hole inserts with "INS-" at the beginning of their product number.**

Download Datasheet

Products specifications

Description	Cable Gland
Type	Multi-Hole
Colour	Black
Material	Nylon 66
Width	33mm
Diameter	25mm
Thread Length	15mm
Thread Pitch	M25 x 1.5mm
Cable Size Minimum	3mm
Cable Size Maximum	6mm
IP Rating	IP 68
Minimum Temperature	-40°C
Maximum Temperature	100°C
Other information	5 Holes
