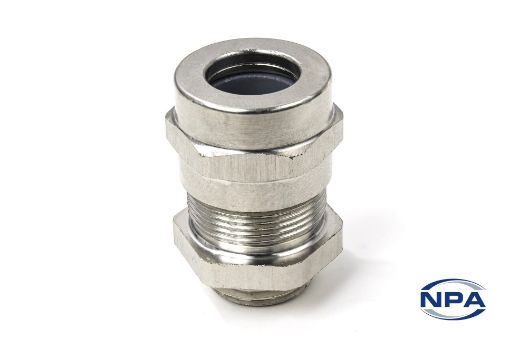

    Cable Gland Single Seal

    Product Code: P05-201M16C
    Manufacturer: Delaunay
    UOM: EACH
    Cable glands for heavy duty applications such a rail with a single silicone seal for extra cable protection. Sealing certifications: CEI 60529, IP6X, IPX6, IPX8. Traction & Rotation Certifications: NF EN 50262, NF EN 62444. Shock certifications: NF EN 50262. Railway traction certification: NF F 61-030. Railway wear: 1 million cycles. Hazardous material certifications: RoHS - reach, ENG-FRM-001. Fire and flame arrestor certifications: NF F 16-101:I2F0, EN 45545-2:HL3, EN 45545-3:E25 (up to 820°C). Moulded from nickel plated brass with silicone insert and sealing fiber.

    Products specifications

    DescriptionCable Gland
    TypeSingle Seal
    MaterialNickel Plated Brass With Silicone Seal
    Length34.5mm
    Width22mm
    Thread Length6mm
    Thread PitchM20
    Cable Size Minimum8mm
    Cable Size Maximum12.4mm
    IP RatingIP 6X, IPX6, IPX8
    Minimum Temperature-50°C
    Maximum Temperature800°C
    Flammability RatingI2F0, HL3, E25
    CertificationsRoHS
