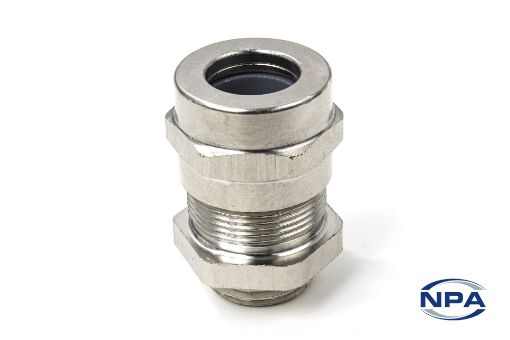

Cable Gland Single Seal

Name: Cable Gland Single Seal
SKU: P06-101M20C
Availability: InStock

Product Code: P06-101M20C

Manufacturer: Delaunay

UOM: EACH

Cable glands for heavy duty applications such a rail with a single silicone seal for extra cable protection. Sealing certifications: CEI 60529, IP6X, IPX6, IPX8. Traction & Rotation Certifications: NF EN 50262, NF EN 62444. Shock certifications: NF EN 50262. Railway traction certification: NF F 61-030. Railway wear: 1 million cycles. Hazardous material certifications: RoHS - reach, ENG-FRM-001. Fire and flame arrestor certifications: NF F 16-101:I2F0, EN 45545-2:HL3, EN 45545-3:E25 (up to 820°C). Moulded from nickel plated brass with silicone insert and sealing fiber.

Download Datasheet

Products specifications

Description	Cable Gland
Type	Single Seal
Material	Nickel Plated Brass With Neoprene Seal
Length	37mm
Width	26mm
Thread Length	7mm
Thread Pitch	M20
Cable Size Minimum	7mm
Cable Size Maximum	16.2mm
IP Rating	IP 6X, IPX6, IPX8
Minimum Temperature	-50°C
Maximum Temperature	200°C
Flammability Rating	I2F0, HL3, E25
Certifications	RoHS
