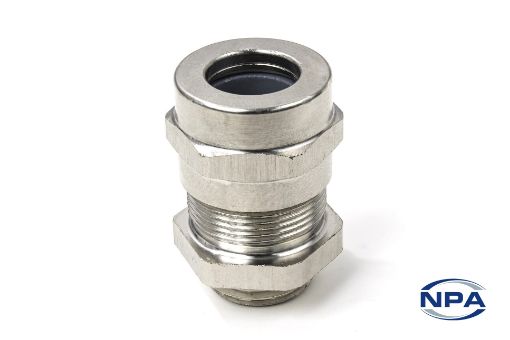

Cable Gland Single Seal

Product Code: P06-201M20C
Manufacturer: Delaunay
UOM: EACH
Cable glands for heavy duty applications such a rail with a single silicone seal for extra cable protection. Sealing certifications: CEI 60529, IP6X, IPX6, IPX8. Traction & Rotation Certifications: NF EN 50262, NF EN 62444. Shock certifications: NF EN 50262. Railway traction certification: NF F 61-030. Railway wear: 1 million cycles. Hazardous material certifications: RoHS - reach, ENG-FRM-001. Fire and flame arrestor certifications: NF F 16-101:I2F0, EN 45545-2:HL3, EN 45545-3:E25 (up to 820°C). Moulded from nickel plated brass with silicone insert and sealing fiber.
Products specifications
DescriptionCable Gland
TypeSingle Seal
MaterialNickel Plated Brass With Silicone Seal
Length37mm
Width26mm
Thread Length7mm
Thread PitchM20
Cable Size Minimum7
Cable Size Maximum16.2mm
IP RatingIP 6X, IPX6, IPX8
Minimum Temperature-55°C
Maximum Temperature800°C
Flammability RatingI2F0, HL3, E25
CertificationsRoHS
