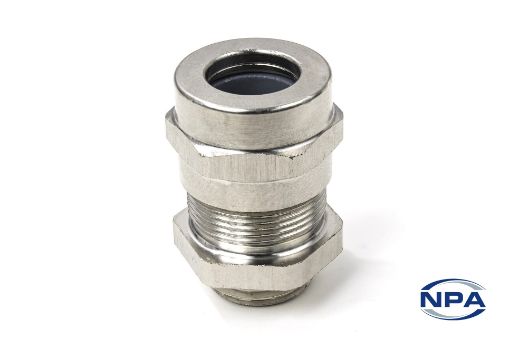

Cable Gland Single Seal

Name: Cable Gland Single Seal
SKU: P07-101M25C
Availability: InStock

Product Code: P07-101M25C

Manufacturer: Delaunay

UOM: EACH

Cable glands for heavy duty applications such a rail with a single silicone seal for extra cable protection. Sealing certifications: CEI 60529, IP6X, IPX6, IPX8. Traction & Rotation Certifications: NF EN 50262, NF EN 62444. Shock certifications: NF EN 50262. Railway traction certification: NF F 61-030. Railway wear: 1 million cycles. Hazardous material certifications: RoHS - reach, ENG-FRM-001. Fire and flame arrestor certifications: NF F 16-101:I2F0, EN 45545-2:HL3, EN 45545-3:E25 (up to 820°C). Moulded from nickel plated brass with silicone insert and sealing fiber.

Download Datasheet

Products specifications

Description	Cable Gland
Type	Single Seal
Material	Nickel Plated Brass With Neoprene Seal
Width	32mm
Thread Length	8mm
Thread Pitch	M25
Cable Size Minimum	11mm
Cable Size Maximum	20.7mm
IP Rating	IP 6X, IPX6, IPX8
Minimum Temperature	-50°C
Maximum Temperature	200°C
Flammability Rating	I2F0, HL3, E25
Certifications	RoHS
