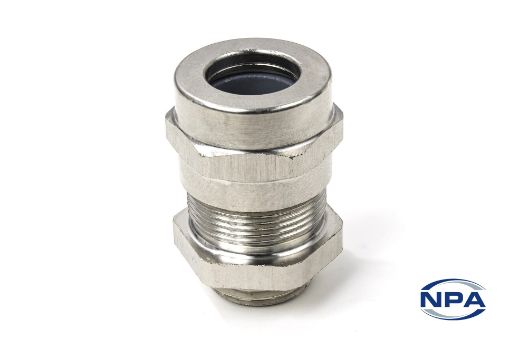

Cable Gland Single Seal

Product Code: P07-201M25C
Manufacturer: Delaunay
UOM: EACH
Cable glands for heavy duty applications such a rail with a single silicone seal for extra cable protection. Sealing certifications: CEI 60529, IP6X, IPX6, IPX8. Traction & Rotation Certifications: NF EN 50262, NF EN 62444. Shock certifications: NF EN 50262. Railway traction certification: NF F 61-030. Railway wear: 1 million cycles. Hazardous material certifications: RoHS - reach, ENG-FRM-001. Fire and flame arrestor certifications: NF F 16-101:I2F0, EN 45545-2:HL3, EN 45545-3:E25 (up to 820°C). Moulded from nickel plated brass with silicone insert and sealing fiber.
Products specifications
DescriptionCable Gland
TypeSingle Seal
MaterialNickel Plated Brass With Silicone Seal
Length41.5mm
Width32mm
Thread Length8mm
Thread PitchM20
Cable Size Minimum11mm
Cable Size Maximum20.7mm
IP RatingIP 6X, IP X6, IP X8
Minimum Temperature-50°C
Maximum Temperature800°C
Flammability RatingI2F0, HL3, E25
CertificationsRoHS
