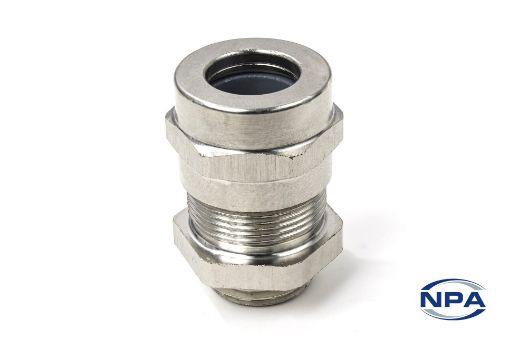

Cable Gland Single Seal

Product Code: P08-101M32C
Manufacturer: Delaunay
UOM: EACH
Cable glands for heavy duty applications such a rail with a single silicone seal for extra cable protection. Sealing certifications: CEI 60529, IP6X, IPX6, IPX8. Traction & Rotation Certifications: NF EN 50262, NF EN 62444. Shock certifications: NF EN 50262. Railway traction certification: NF F 61-030. Railway wear: 1 million cycles. Hazardous material certifications: RoHS - reach, ENG-FRM-001. Fire and flame arrestor certifications: NF F 16-101:I2F0, EN 45545-2:HL3, EN 45545-3:E25 (up to 820°C). Moulded from nickel plated brass with silicone insert and sealing fiber.
Products specifications
DescriptionCable Gland
TypeSingle Seal
MaterialNickel Plated Seal With Neoprene Ring
Length48.5mm
Width41mm
Thread Length9mm
Thread PitchM32
Cable Size Minimum15mm
Cable Size Maximum27.5mm
IP RatingIP 6X, IPX6, IPX8
Minimum Temperature-50°C
Maximum Temperature200°C
Flammability RatingI2F0, HL3, E25
CertificationsRoHS
