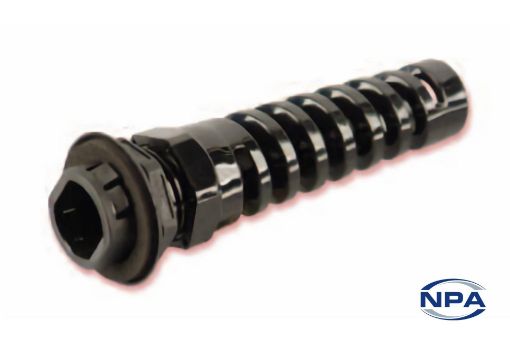

Cable Gland Snap-In Pigtail Black

Product Code: M3862
Manufacturer: Heyco
UOM: EACH
Pigtail cable glands designed to snap into 12.7mm holes. Feature a spring to force cables into a lazy bend further reducing strain. Rated IP 65. Fit cables from 1.7mm to 5.3mm in diameter.
Products specifications
DescriptionCable Gland
TypeSnap-In Pigtail
ColourBlack
MaterialNylon 66 With TPE Sealing Gland
Length63.5mm
Mounting Hole Diameter12.7mm
Panel Thickness1.6mm - 3.2mm
Cable Size Minimum1.7mm
Cable Size Maximum5.3mm
IP RatingIP 65
Minimum Temperature-40°C
Maximum Temperature115°C
Flammability Rating94V-2
CertificationsUL, CSA
