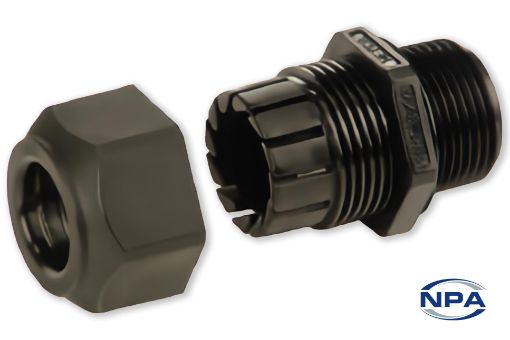

    Picture of Cable Gland Straight-Thru Liquid Tight Black

    Cable Gland Straight-Thru Liquid Tight Black

    Product Code: M3304
    Manufacturer: Heyco
    UOM: EACH
    M63 cable glands for cables measuring 36.8mm to 43.9mm. Sealing is rated IP 68. Approved for NEMA 4, 4X, 6 and 6P applications.
    Download Datasheet
    Login to purchase this item
    Products specifications
    DescriptionCable Gland
    TypeStraight-Thru Liquid Tight
    ColourBlack
    MaterialNylon 66 With TPE Sealing Gland
    Length66.7mm
    Width69.3mm
    Mounting Hole Diameter63mm
    Thread Length12.7mm
    Thread PitchM63
    Cable Size Minimum36.8mm
    Cable Size Maximum43.9mm
    IP RatingIP 68
    Minimum Temperature-40°C
    Maximum Temperature115°C
    Flammability Rating94V-2
    CertificationsUL, CSA
    Other informationWith Integral Sealing Ring
