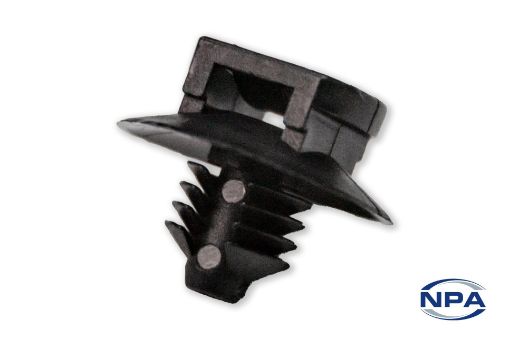

Cable Tie Mount Push Mount Black

Product Code: NM23PM25B

UOM: EACH

Mounts for 5mm wide cable ties. The christmas tree fitting allows for mounting in 7.6mm holes of any panel thickness.

Products specifications

Description	Cable Tie Mount
Type	Push Mount
Colour	Black
Material	Nylon 66
Length	7.3mm
Height	6.3mm
Diameter	16.12mm
Mounting Hole Diameter	7.6mm
Cable Size mm	5mm
Flammability Rating	94V-2
Certifications	UL
