Connector Set Jumper Cable

Name: Connector Set Jumper Cable
SKU: S6319.6.0
Availability: InStock

Product Code: S6319.6.0

Manufacturer: Heyco

UOM: EACH

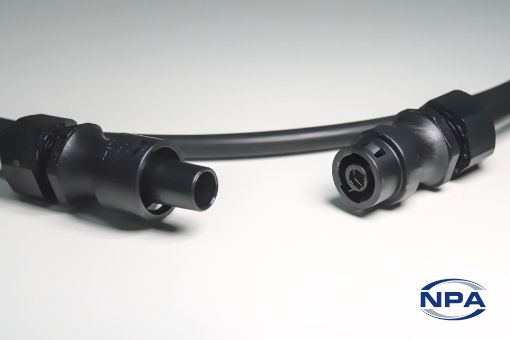

Precut and terminated CPV assemblies. Constructed from UV resistant 10AW. UL/TUV approved solar cable. Suitable for UL and IEC solar installations. Connectors meet UL cold impact test of -35°C. Connectors meet all NEC requirements for solar installations. Maximum cable assembly current rating - 30 amps. Material: Polycarbonat. Recognized under the Component Program of Underwriters’ Laboratories File E344722. Certification Number R60033714. Flammability Rating: V0.

Download Datasheet

Products specifications

Description	Connector Set
Type	Jumper Cable
Material	Polycarbonate
Length	6ft.
Cable Size AWG	10
IP Rating	IP 65, 67
Minimum Temperature	-40°C
Maximum Temperature	85°C
Certifications	UL, VDE
Other information	Terminations CPV-P, CPV-N
