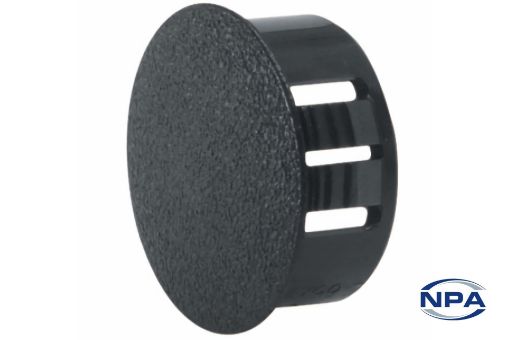

Hole Plug Dome Black

Name: Hole Plug Dome Black
SKU: 2783
Availability: InStock

Product Code: 2783

Manufacturer: Heyco

UOM: EACH

Close unneeded panel holes and electrical knockouts. Convex, matte finish head tapers to a thin edge. Quick and easy installation. Locks firmly in panels up to .250" (6.4 mm) thick. Approximate Head Thickness: .063" (1.6 mm). Thickness may vary. Moulded from Nylon 6/6. Recognized under the Component Program of Underwriters' Laboratories File E51579. Certified by the Canadian Standards Association File 8919. Flammability Rating: 94V-2. Temperature Range: -40°F (-40°C) to 221°F (105°C).

Download Datasheet

Products specifications

Description	Hole Plug
Type	Dome
Colour	Black
Material	Nylon 66
Height	11.9mm
Diameter	55.1mm
Mounting Hole Diameter	50.8mm
Panel Thickness	3.2mm
Minimum Temperature	-40°C
Maximum Temperature	105°C
Flammability Rating	94V-2
Certifications	UL, CSA

Customers who bought this item also bought

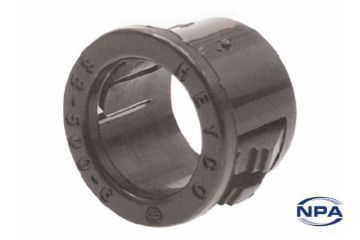

Bushing Snap Black

Product Code: 2140

UOM: EACH

Height: 11.5mm

Diameter: 28.6mm

Mounting Hole Diameter: 25.4mm

Internal Hole Diameter: 19.4mm

Panel Thickness: 3.2mm

Easy to install snap-in bushings smooth and insulate holes. Withstand a push back force of 35 lbs. (16kg).

to purchase this item

Bushing Snap Black

Product Code: 2198

UOM: EACH

Height: 11.5mm

Diameter: 34.5mm

Mounting Hole Diameter: 31.8mm

Internal Hole Diameter: 23.8mm

Panel Thickness: 3.2mm

Bushings to smooth rough edged holes and provide insulation for cables passing through. Withstand a push back force of 35 lbs. (16kg).

to purchase this item

Nut Metric Natural

Product Code: V61800

UOM: EACH

Width: 7.8mm

Height: 4.1mm

Thread Pitch: M5

M5 Hexagonal nuts suitable for any purpose.

to purchase this item

Machine Screw Cheese Head, Slotted Natural

Product Code: V50M050080D040

UOM: EACH

Height: 3.12mm

Diameter: 8.36mm

Thread Pitch: M5 x 0.8mm

Machine screws with a cylindrical "cheese" shaped head. Slotted for use with flat head screwdrivers.

to purchase this item
