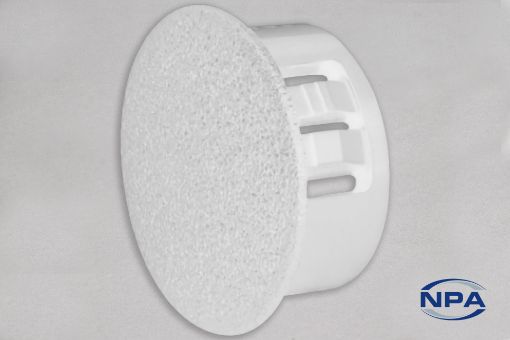

    Hole Plug Dome White

    Product Code: 2791
    Manufacturer: Heyco
    UOM: EACH
    Close unneeded panel holes and electrical knockouts. Convex, matte finish head tapers to a thin edge. Quick and easy installation. Locks firmly in panels up to .250" (6.4 mm) thick. Approximate Head Thickness: .063" (1.6 mm). Thickness may vary. Moulded from Nylon 6/6. Recognized under the Component Program of Underwriters' Laboratories File E51579. Certified by the Canadian Standards Association File 8919. Flammability Rating: 94V-2. Temperature Range: -40°F (-40°C) to 221°F (105°C).

    Products specifications

    DescriptionHole Plug
    TypeDome
    ColourWhite
    MaterialNylon 66
    Height19.1mm
    Diameter68.8mm
    Mounting Hole Diameter63.5mm
    Panel Thickness6.4mm
    Minimum Temperature-40°C
    Maximum Temperature105°C
    Flammability Rating94V-2
    CertificationsUL, CSA
