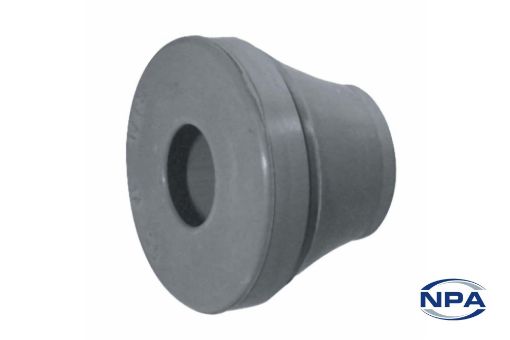

    Picture of Liquid Tight Bushing Snap-In Grey

    Liquid Tight Bushing Snap-In Grey

    Product Code: 4013
    Manufacturer: Heyco
    UOM: EACH
    27mm - 35mm cables fit inside these EPDM bushings. To install, snap into place, cut cable end at a 45° angle, pierce the thin membrane then insert and pull back cable to form a liquid tight seal. Can be used as a liquid tight plug with IP Rating 67.
    Download Datasheet
    Login to purchase this item
    Products specifications
    DescriptionLiquid Tight Bushing
    TypeSnap-In
    ColourGrey
    MaterialEPDM
    Length35mm
    Diameter60.5mm
    Mounting Hole Diameter50.2mm
    Thickness7mm
    Panel Thickness4mm
    Cable Size Minimum27mm
    Cable Size Maximum35mm
    IP RatingIP 67
    Minimum Temperature-40°C
    Maximum Temperature93°C
    Other informationTo Fit M50
