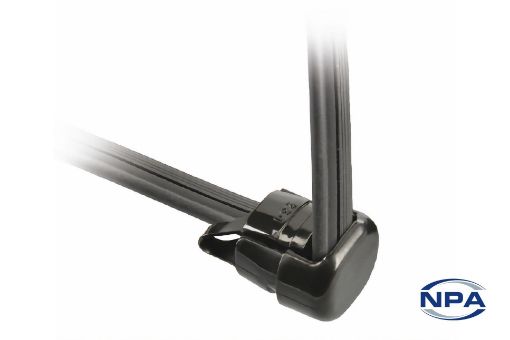

Strain Relief Bushing Right-Angled - For Flat Cables Black

Product Code: 1464

Manufacturer: Heyco

UOM: EACH

Right angled strain relief bushings for flat cables. Fit SPT-3 cables measuring AWG 14/2 (6.1mm x 10.7mm), 14/3 (6.1mm x 13mm), 12/3 (7.4mm x 13mm) or 12/3 (7.4mm x 16.5mm).

Download Datasheet

Products specifications

Description	Strain Relief Bushing
Type	Right-Angled - For Flat Cables
Colour	Black
Material	Nylon 66
Length	24.6mm
Mounting Hole Diameter	22.2mm
Panel Thickness	3.2mm
Cable Size AWG	14 - 12
Cable Size Minimum	6.1 x 10.7mm
Cable Size Maximum	7.4 x 16.5mm
Minimum Temperature	-18°C
Maximum Temperature	105°C
Flammability Rating	94V-2
Certifications	UL, CSA
Other information	Flat Cable
