Strain Relief Bushing Right-Angled - For Round Cables Black

Name: Strain Relief Bushing Right-Angled - For Round Cables Black
SKU: 1374
Availability: InStock

Product Code: 1374

Manufacturer: Heyco

UOM: EACH

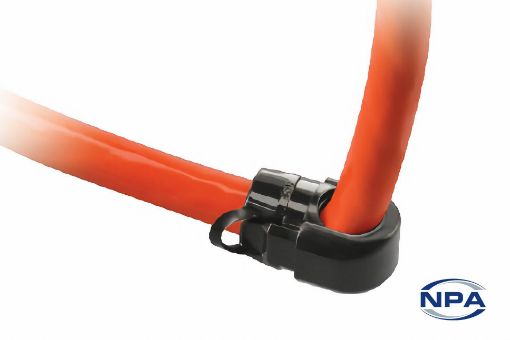

Right-angled strain relief bushings to reduce strain on round cables. Fit SV & SVT cables measuring AWG 18/2 (6.4mm) or HPD cables measuring AWG 18/2 (6.9mm) and 16/2 (7.4mm).

Download Datasheet

Products specifications

Description	Strain Relief Bushing
Type	Right-Angled - For Round Cables
Colour	Black
Material	Nylon 66
Length	17.5mm
Mounting Hole Diameter	12.7mm - 13.1mm
Panel Thickness	2.5mm
Cable Size AWG	18 - 16
Cable Size Minimum	6.4mm
Cable Size Maximum	7.4mm
Minimum Temperature	-18°C
Maximum Temperature	105°C
Flammability Rating	94V-2
Certifications	UL, CSA
Other information	Round Cable
