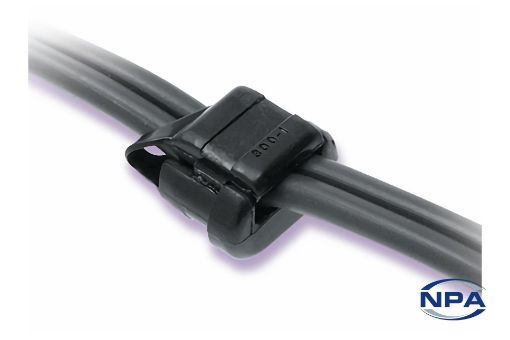

Strain Relief Bushing Straight-Thru - For Flat Cables Black

Name: Strain Relief Bushing Straight-Thru - For Flat Cables Black
SKU: 1114
Availability: InStock

Product Code: 1114

Manufacturer: Heyco

UOM: EACH

Bushings to anchor flat cables through holes while absorbing push, pull and other strains. Fit PT-1 Cables measuring AWG 18/3 (3mm x 7.6mm, SPT-2 HPN cables 18/2 (3.8mm, x 7.1mm), HPN cables 18/3 (3.8 x 8.6mm) & SPT-2 HPN cables 16/2 (4.1m x 7.6mm). To plug an unneeded hole afterwards refer to product 2491.

Download Datasheet

Products specifications

Description	Strain Relief Bushing
Type	Straight-Thru - For Flat Cables
Colour	Black
Material	Nylon 66
Length	12.7mm
Mounting Hole Diameter	12.7mm - 13.1mm
Panel Thickness	2.4mm
Cable Size AWG	18 - 16
Cable Size Minimum	3.8mm x 7.1mm
Cable Size Maximum	4.1mm x 8.6mm
Flammability Rating	94V-2
