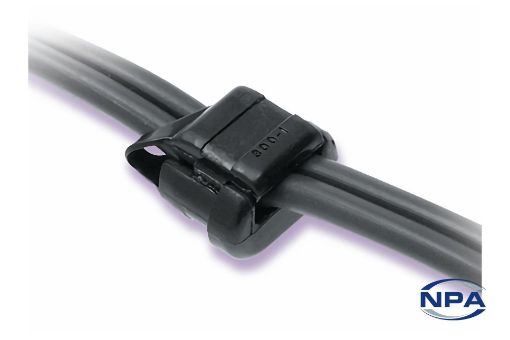

    Picture of Strain Relief Bushing Straight-Thru - For Flat Cables Black

    Strain Relief Bushing Straight-Thru - For Flat Cables Black

    Product Code: 1504
    Manufacturer: Heyco
    UOM: EACH
    19mm bushings to relieve strain on flat cables. Fit SPT-3 cables measuring AWG 16/2 (5.1 x 9.4mm), 16/3 (5.1mm x 10.9mm), 14/2 (6.1mm x 10.7mm) or 14/3 (6.1mm x 12.9mm)
    Download Datasheet
    Login to purchase this item

    Products specifications

    DescriptionStrain Relief Bushing
    TypeStraight-Thru - For Flat Cables
    ColourBlack
    MaterialNylon 66
    Length19.8mm
    Mounting Hole Diameter19mm
    Panel Thickness3.2mm
    Cable Size AWG16 - 14
    Cable Size Minimum5.1 x 9.4mm
    Cable Size Maximum6.1 x 12.9mm
    Minimum Temperature-18°C
    Maximum Temperature105°C
    Flammability Rating94V-2
