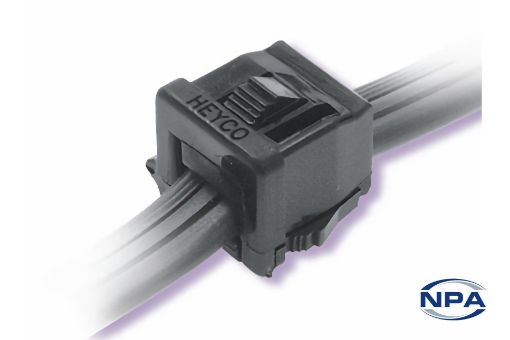

Strain Relief Bushing Straight-Thru - For Flat Cables Black

Name: Strain Relief Bushing Straight-Thru - For Flat Cables Black
SKU: 1829
Availability: InStock

Product Code: 1829

Manufacturer: Heyco

UOM: EACH

Strain relief bushings for flat cables in rectangular holes. Fit SPT-1 cables measuring AWG 18/2 (3mm x 5.6mm) or 18/3 (3mm x 7.6mm). Also fit SPT-2 & HPN cables measuring AWG 18/2 (3.8mm x 7.1mm) or 16/2 (4.1mm x 7.6mm).

Download Datasheet

Products specifications

Description	Strain Relief Bushing
Type	Straight-Thru - For Flat Cables
Colour	Black
Material	Nylon 66
Mounting Hole Diameter	11.5mm x 13mm
Panel Thickness	0.8mm - 2.5mm
Cable Size AWG	18 - 16
Cable Size Minimum	3mm x 5.6mm
Cable Size Maximum	4.1mm x 7.6mm
Flammability Rating	94V-2
Certifications	UL, CSA
Other information	Flat Cable
