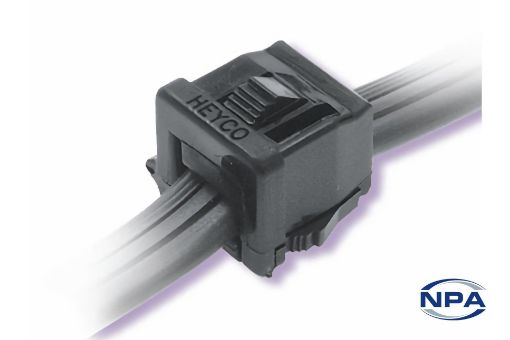

    Strain Relief Bushing Straight-Thru - For Flat Cables Black

    Product Code: 1834
    Manufacturer: Heyco
    UOM: EACH
    Strain relief bushings designed to easily snap onto flat cables. Fit in rectangular holes. Compatible with HPN cables measuring AWG 16/3 (4.1mm x 9.4mm) or 18/3 (3.8mm x 8.6mm, 3.8mm x 10.2mm). Also compatible with SPT-2 cables AWG 16/3 (4.1mm x 10.4mm), 18/2 (4.8mm x 8.9mm) & SPT-3 cables AWG 18/3 (4.8mm x 9.9mm), 16/2 (5.1mm x 9.4mm), 16/3 (5.1mm x 10.9mm) or 14/2 (6.1mm x 10.7mm).

    Products specifications

    DescriptionStrain Relief Bushing
    TypeStraight-Thru - For Flat Cables
    ColourBlack
    MaterialNylon 66
    Mounting Hole Diameter17.5mm x 17.5mm
    Panel Thickness0.8mm - 4mm
    Cable Size AWG18 - 14
    Cable Size Minimum3.8mm x 8.6mm
    Cable Size Maximum6.1mm x 10.7mm
    Flammability Rating94V-2
    CertificationsUL, CSA
    Other informationFlat Cable
