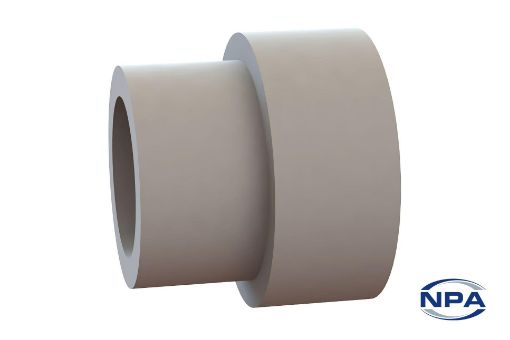

    Washer Shoulder Natural

    Product Code: 12SWS0902
    Manufacturer: Microplastics
    UOM: EACH
    Shoulder washers direct and insulate metal screws while also sealing holes and acting as a spacer.

    Products specifications

    DescriptionWasher
    TypeShoulder
    ColourNatural
    MaterialNylon 66
    Length0.79mm
    Height1.59mm
    Diameter11.1mm
    Internal Hole Diameter3.96mm
    Shaft Diameter6.22mm
    Minimum Temperature-40°C
    Maximum Temperature85°C
    Flammability Rating94V-2
    CertificationsUL
