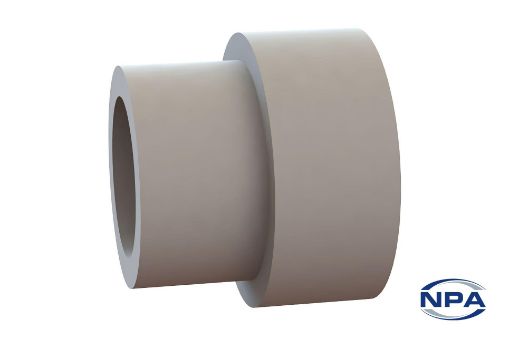

    Washer Shoulder Natural

    Product Code: 12SWS2585
    Manufacturer: Microplastics
    UOM: EACH
    Shoulder washers direct and insulate metal screws while also sealing holes and acting as a spacer.

    Products specifications

    DescriptionWasher
    TypeShoulder
    ColourNatural
    MaterialNylon 66
    Length6.35mm
    Height12.7mm
    Diameter18.8mm
    Internal Hole Diameter9.65mm
    Shaft Diameter15.37mm
    Minimum Temperature-40°C
    Maximum Temperature85°C
    Flammability Rating94V-2
    CertificationsUL
