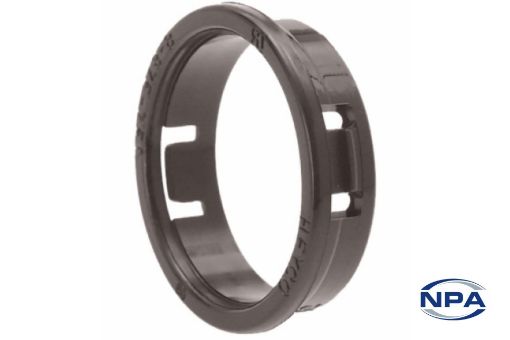

    Bushing Shorty Black

    Product Code: 2810
    Manufacturer: Heyco
    UOM: EACH
    Snap-in bushings with a shorter height for protecting cables through thin panels with a low clearance.

    Products specifications

    DescriptionBushing
    TypeShorty
    ColourBlack
    MaterialNylon 66
    Height6mm
    Diameter9.7mm
    Mounting Hole Diameter7.9mm
    Internal Hole Diameter6.3mm
    Panel Thickness1.6mm
    Minimum Temperature-18°C
    Maximum Temperature105°C
    Flammability Rating94V-2
    CertificationsUL, CSA
