    Bushing Snap Black

    Product Code: 2166
    Manufacturer: Heyco
    UOM: EACH
    Bushings to smooth rough edged holes and provide insulation for cables passing through. Withstand a push back force of 35 lbs. (16kg).

    Products specifications

    DescriptionBushing
    TypeSnap
    ColourBlack
    MaterialNylon 66
    Height11.5mm
    Diameter30.9mm
    Mounting Hole Diameter27.8mm - 28.6mm
    Internal Hole Diameter23.8mm
    Panel Thickness3.2mm
    Minimum Temperature-18°C
    Maximum Temperature105°C
    Flammability Rating94V-2
    CertificationsUL, CSA
    Customers who bought this item also bought

    Ferrule Single Wire Black

    30353
    EACH
    14.6mm
    1.7mm
    1.5mm² insulated bootlace ferrules. Protect stranded cables in screw connectors and terminal blocks.
    to purchase this item

    Cable Tie [Sold in bags of 1000] Standard Black

    42016
    EACH
    200mm
    2.5mm
    200mm long black standard cable ties for securing bundles. Smooth rounded edges mean easier handling and safer installation. Bent rounded tip allows easier insertion through the tie's head.
    to purchase this item

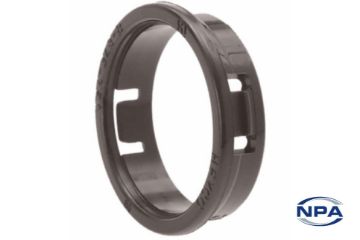

    Bushing Shorty Black

    2810
    EACH
    6mm
    9.7mm
    7.9mm
    6.3mm
    1.6mm
    Snap-in bushings with a shorter height for protecting cables through thin panels with a low clearance.
    to purchase this item

    Bushing Snap Black

    2198
    EACH
    11.5mm
    34.5mm
    31.8mm
    23.8mm
    3.2mm
    Bushings to smooth rough edged holes and provide insulation for cables passing through. Withstand a push back force of 35 lbs. (16kg).
    to purchase this item
