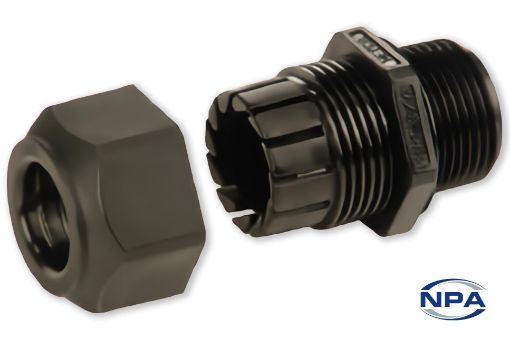

Picture of Cable Gland Straight-Thru Liquid Tight Black

Cable Gland Straight-Thru Liquid Tight Black

Product Code: M4338
Manufacturer: Heyco
UOM: EACH
M20 threaded cable glands for 2.7mm - 7.4mm cables. Rated IP 68.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionCable Gland
TypeStraight-Thru Liquid Tight
ColourBlack
MaterialNylon 66 With TPE Sealing Gland
Length38.9mm
Width24.9mm
Mounting Hole Diameter20mm
Thread Length10.4mm
Thread PitchM20
Cable Size Minimum2.4mm
Cable Size Maximum7.4mm
IP RatingIP 68
Minimum Temperature-40°C
Maximum Temperature115°C
Flammability Rating94V-2
CertificationsUL, CSA
