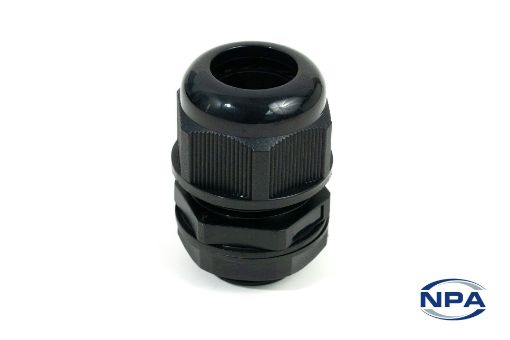

Picture of Cable Gland Multi-Hole Black

Cable Gland Multi-Hole Black

Product Code: 43003-4-2-INS
Manufacturer: NPA
UOM: EACH
M25 threaded nylon cable glands with four holes for 3.5mm - 7mm cables. Supplied complete with locknut and washer. **Compatible with all multi-hole inserts with "INS-" at the beginning of their product number.**
Download Datasheet
Login to purchase this item
Products specifications
DescriptionCable Gland
TypeMulti-Hole
ColourBlack
MaterialNylon 66
Width33mm
Diameter25mm
Thread Length15mm
Thread PitchM25 x 1.5mm
Cable Size Minimum3.5mm
Cable Size Maximum7mm
IP RatingIP 68
Minimum Temperature-40°C
Maximum Temperature100°C
Other information4 Holes
