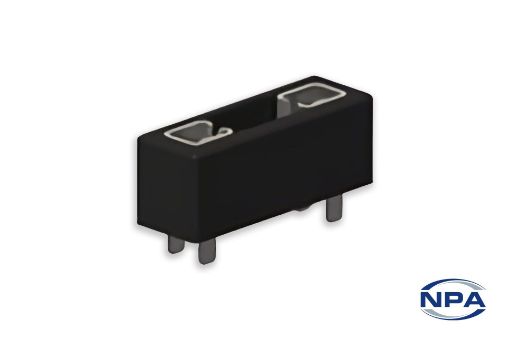

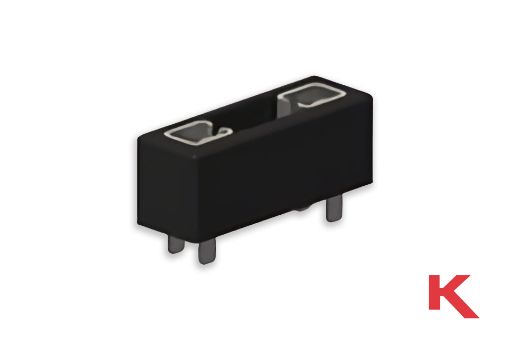

Fuse Holder Universal Blade Clip Black

Name: Fuse Holder Universal Blade Clip Black
SKU: K3557-2
Availability: InStock

Product Code: K3557-2

UOM: EACH

Universal female blade fuse clip holds two Littelfuse ATO 257 series / Bussmann ATC series / APR / Littelfuse 891,897 series / Bussmann ATM-LP series / APS /Littelfuse 297 or 997 series / Bussmann ATM series / APM or equivalent.Thru-hole mounted. Current rating: 30 Amps.

Download Datasheet

Products specifications

Description	Fuse Holder
Type	Universal Blade Clip
Colour	Black
Material	Nylon 46 Insulator With Tin-Nickel Plated Brass Contacts
Length	19.8mm
Width	6.8mm
Height	7.4mm
Voltage Rating	500VAC
Current Rating	30A
Mounting Type	Thru-Hole Mount (THM)
Minimum Temperature	-50°C
Maximum Temperature	145°C
Flammability Rating	94V-0
Certifications	UL
Other information	Fuse Size: 2 x (Littelfuse ATO 257 Series, Bussman ATC Series, APR, Littelfuse 891, 897 Series, Bussman ATM-LP Series, APS, Littelfuse 297 Or 997 Series, Bussman ATM Series, APM Or Equivalent)
