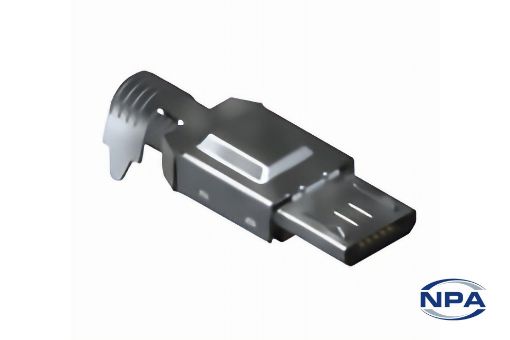

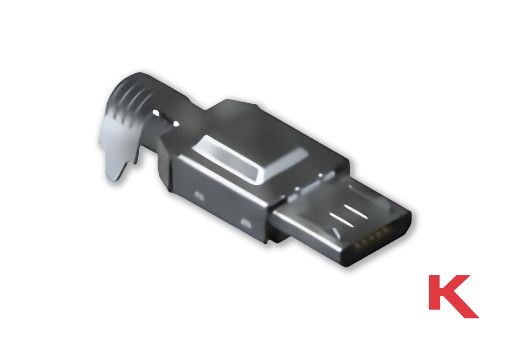

Micro-USB Type B Plug Cable Plug

Name: Micro-USB Type B Plug Cable Plug
SKU: K941
Availability: InStock

Product Code: K941

UOM: EACH

Micro USB plug kit contains USB 2.0, Contacts, Insulator and Shell. Cable clamp style for creating custom cables. Voltage: 30V D. Contact resistance: 50 milliohms maximum. Dielectric withstanding: 300V AC A. Mate force: 3.0kgf maximum. Unmate force: 0.7 kgf mln.

Download Datasheet

Products specifications

Description	Micro-USB Type B Plug
Type	Cable Plug
Material	Nickel Plated Shell, Thermoplastic Insulator, Copper Alloy Contacts, Gold Flash over Nickel Contact Area, Tin over Nickel Solder Trails
Length	23.5mm
Width	8mm
Height	5.3mm
Voltage Rating	30V
Current Rating	1A
Minimum Temperature	-25°C
Maximum Temperature	80°C
Flammability Rating	94V-0
Certifications	UL
