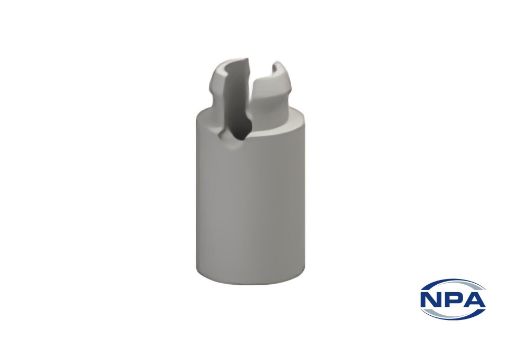

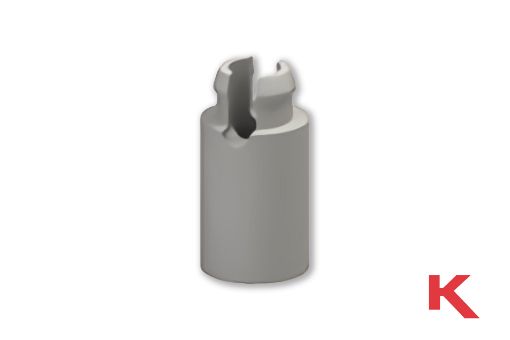

PCB Support Thru-Hole Natural

Product Code: K9029
Manufacturer: Keystone
UOM: EACH
6.4mm tall PCB supports with a snap-in locking mount at one end and a thru-hole for #4 screws on the other.
Products specifications
DescriptionPCB Support
TypeThru-Hole
ColourNatural
MaterialNylon 66
Diameter6.6mm
Mounting Hole Diameter4.7mm
Internal Hole Diameter3.2mm
Spacing6.4mm
Chassis Thickness1.57mm
Screw Size#4
Flammability Rating94V-0
CertificationsUL
