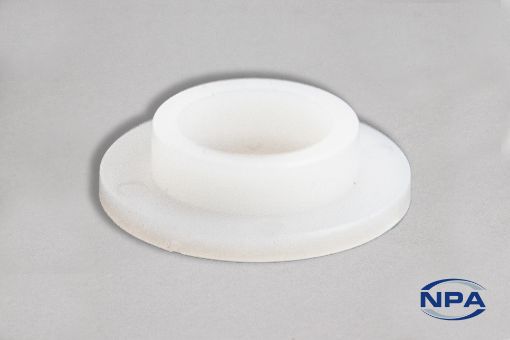

Shoulder Washer Imperial Natural

Product Code: V10SC010025

Manufacturer: NPA

UOM: EACH

These screw insulators may also be used as light load bearings in many applications. Shaft diameter: 5.08mm.

Products specifications

Description	Shoulder Washer
Type	Imperial
Colour	Natural
Material	Nylon 66
Length	6.35mm
Height	1.59mm
Diameter	10.13mm
Internal Hole Diameter	5.08mm
Shaft Diameter	6.6mm
Minimum Temperature	-40°C
Maximum Temperature	85°C
Flammability Rating	94V-2
Certifications	UL
