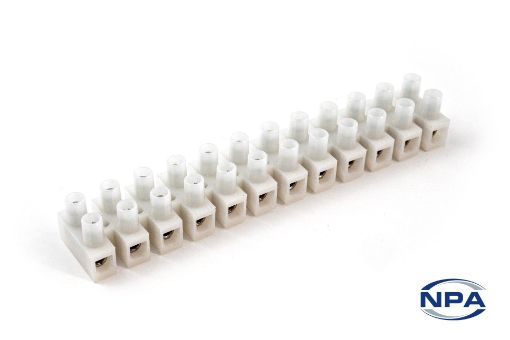

    Terminal Block Standard Natural

    Product Code: 31612
    Manufacturer: NPA
    UOM: EACH
    Standard terminal block. Base raised to 1.2mm. 12 screw poles for connecting wires. Rated for 450V and 20A. Stripping Length : 5.3m.

    Products specifications

    DescriptionTerminal Block
    TypeStandard
    ColourNatural
    MaterialNylon 66
    Length117.5mm
    Width20.2mm
    Height17mm
    Mounting Hole Diameter3.6mm
    Internal Hole Diameter3.4mm
    Thread PitchM3 x 6mm
    Spacing10mm
    Number of Poles12
    Voltage Rating450V
    Current Rating20A
    Wire ProtectionNo
    Cable Size AWG22 - 10 (Sol Cu), 14 - 10 (Str Cu)
    Cable Size Minimum1mm²
    Cable Size Maximum4mm²
    CertificationsUL
    Other informationRaised Base 1.2mm
    Customers who bought this item also bought

    Bushing Snap Black

    2140
    EACH
    11.5mm
    28.6mm
    25.4mm
    19.4mm
    3.2mm
    Easy to install snap-in bushings smooth and insulate holes. Withstand a push back force of 35 lbs. (16kg).
    to purchase this item

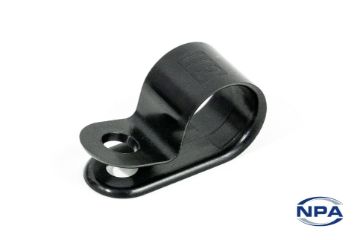

    "P" Clip Heavy Duty Black
