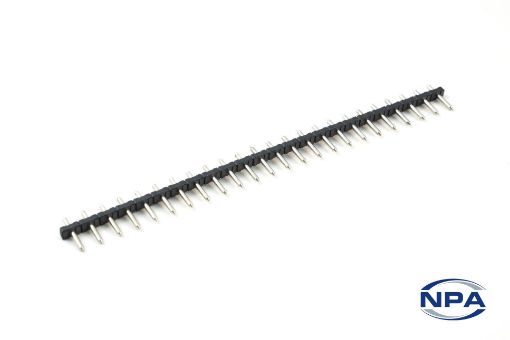

Picture of Terminal Header Strip Thru-Hole Mount

Terminal Header Strip Thru-Hole Mount

Product Code: K8724
Manufacturer: Keystone Electronics
UOM: EACH
Pluggable thru-hole mount terminal header pins. 24 pins but can be cut to meet the number of connections required. Vertical orientation. Current rating: 5 amps.
Download Datasheet
Login to purchase this item
Products specifications
DescriptionTerminal Header Strip
TypeThru-Hole Mount
MaterialPBT Base With Tin Plated Brass Pins
Length83.3mm
Height12.01mm
Mounting Hole Diameter1.19mm
Thickness1.85mm
ProfileVertical
Number of Poles24
Current Rating5A
Customers who bought this item also bought

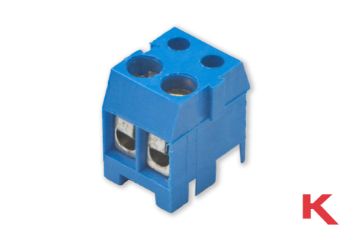

Picture of Terminal Block Pluggable Blue
