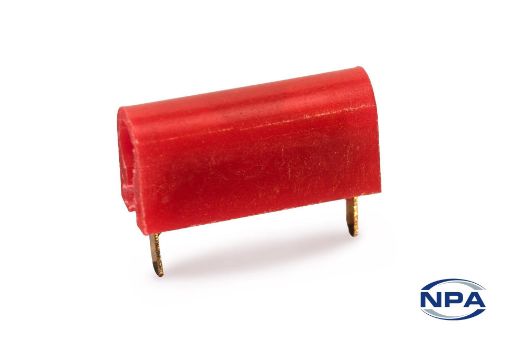

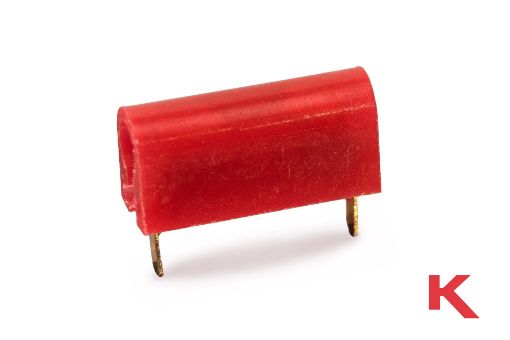

Test Jack Low Profile Red

Name: Test Jack Low Profile Red
SKU: K6061
Availability: InStock

Product Code: K6061

UOM: EACH

This low profile double-entry design is recognized for its dependability, and allows dense packaging on .160" (4.06mm) centers. Side by side mounting. Closed entry design for use with .074 (1.88mm) to .084 (2.13mm) diameter tips. Mounts on .400" (10.16mm) centers in .052" (1.32mm) holes. Current rating: 5 Amps. Breakdown voltage 2100 VRMS. Contact resistance .010" (0.254mm).

Download Datasheet

Products specifications

Description	Test Jack
Type	Low Profile
Colour	Red
Material	Nylon Body With Gold Plated Beryllium Copper Contact
Length	11.68mm
Width	3.96mm
Height	5.59mm
Mounting Hole Diameter	2.03mm
Profile	Low Profile, Horizontal
Tab Size	1.22 x 3.3mm
Mounting Type	Thru-Hole Mount (THM)
