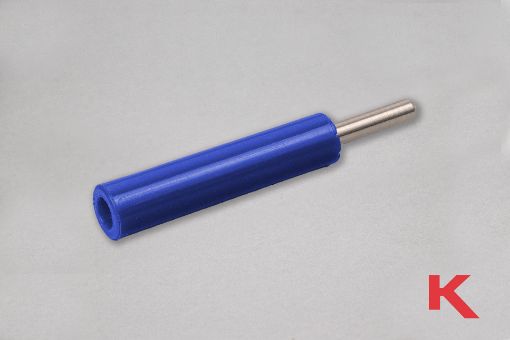

Test Jack Snap-In

Name: Test Jack Snap-In
SKU: K6047
Availability: InStock

Product Code: K6047

UOM: EACH

Vertical test jacks with a unique spring shank which retains the jack throughout wave soldering procedure. Ideal for use on circuit boards of audio, digital and R.F circuitry. Contact recessed to prevent accidental shorting. Current rating: 5 Amps. Operating voltage 1500 Volts RMS. Capacitance between two adjacent jacks less than 1.0 pF at 1 MHz. Snap-fit mounting for .052" (1.32mm) holes.

Download Datasheet

Products specifications

Description	Test Jack
Type	Snap-In
Material	Nylon 66 Body With Silver Plated Beryllium Copper Contact
Length	7.92mm
Diameter	4.75mm
Mounting Hole Diameter	1.32mm
Profile	Vertical
Tab Size	1.14mm x 0.99mm x 3.18mm
Mounting Type	Thru-Hole Mount (THM)
