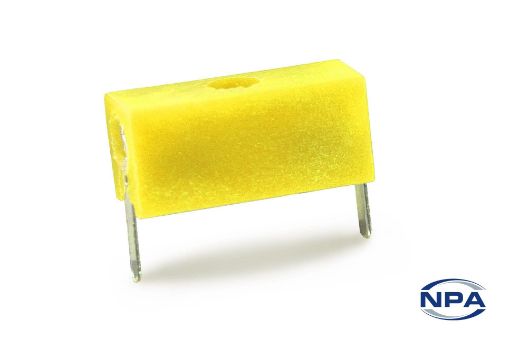

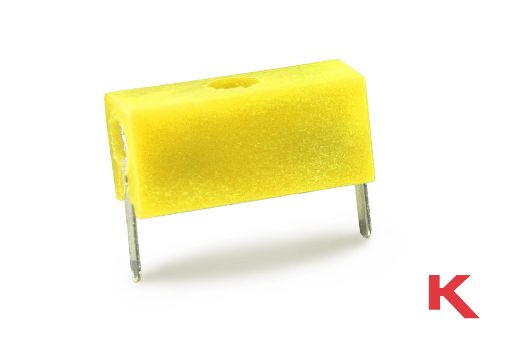

Test Jack Universal Yellow

Name: Test Jack Universal Yellow
SKU: K6057
Availability: InStock

Product Code: K6057

UOM: EACH

This universal design accepts .080" (2.03mm) tip plug in either end, or from top or bottom. Top contact will also accept hook-type oscilloscope probe. Current rating: 5 Amps. Breakdown woltage: 2100 VRM. Capacitance 1.0 pF maximum. Mounts on .400" (10.16mm) centers in .052" (1.32mm) holes. Side by side mounting on .160" (4.06mm) centers.

Download Datasheet

Products specifications

Description	Test Jack
Type	Universal
Colour	Yellow
Material	Nylon Body With Silver Plated Beryllium Copper Contact
Length	10.41mm
Width	3.96mm
Height	5.16mm
Mounting Hole Diameter	2.03mm
Profile	Horizontal
Tab Size	1.22 x 3.38mm
Mounting Type	Thru-Hole Mount (THM)
