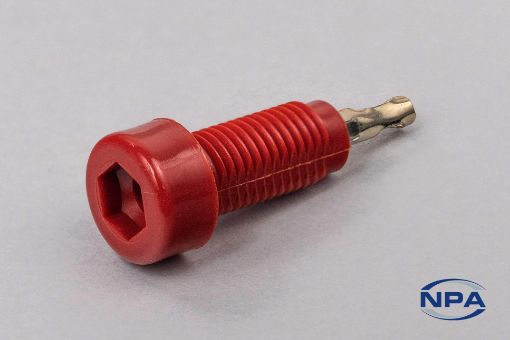

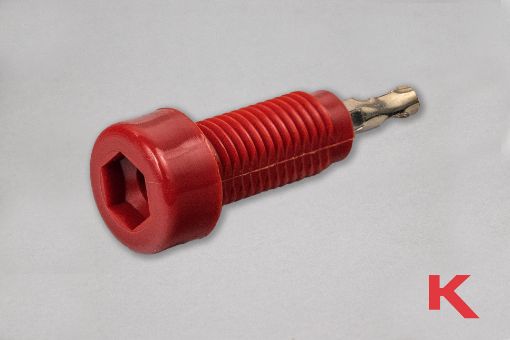

    Picture of Test Tip Jack Ìnsulated Red

    Test Tip Jack Ìnsulated Red

    Product Code: K6031
    Manufacturer: Keystone
    UOM: EACH
    Current rating: 10 Amps. Breakdown voltage 5700 VRMS. Contact resistance: 0.004 OHMS maximum. Capacitance to metal panel 2pF. nominal. Supplied with nut and washer unassembled.
    Download Datasheet
    Login to purchase this item
    Products specifications
    DescriptionTest Tip Jack
    TypeÌnsulated
    ColourRed
    MaterialNylon 66 With Brass Body, Silver Plated Beryllium Copper Spring
    Length19.05mm
    Width9.53mm
    Diameter9.53mm
    Mounting Hole Diameter2.03mm
    Thread Length14.27mm
    Thread Pitch.250-32
    Voltage Rating5700V
    Current Rating10A
