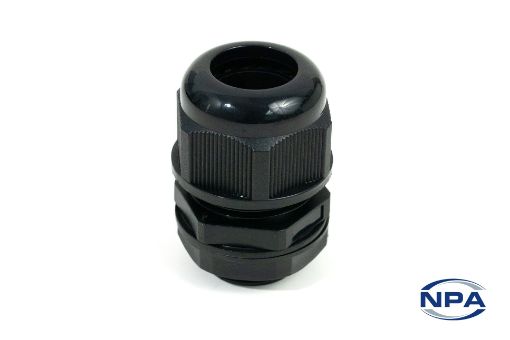

    Cable Gland Standard Black

    Product Code: 43000-1-1-INS
    Manufacturer: NPA
    UOM: EACH
    M12 threaded nylon cable glands for 4.5mm - 8mm cables. Offer protection to IP68 standard. Supplied complete with locknut and washer. **Compatible with all multi-hole inserts with "INS-" at the beginning of their product number.**

    Products specifications

    DescriptionCable Gland
    TypeStandard
    ColourBlack
    MaterialNylon 66
    Width18 - 19mm
    Diameter12mm
    Thread Length8.5mm
    Thread PitchM12 x 1.5mm
    Cable Size Minimum4.5mm
    Cable Size Maximum8mm
    IP RatingIP 68
    Minimum Temperature-40°C
    Maximum Temperature100°C
