Description	Crimp Connector
Type	Quick Connect
Colour	Blue
Material	Copper Tin Plate
Insulation Type	Fully Insulated Double Grip
Tab Size	4.8mm
Cable Size AWG	16 - 14
Cable Size Minimum	1.5mm²
Cable Size Maximum	2.5mm²
Gender	Female

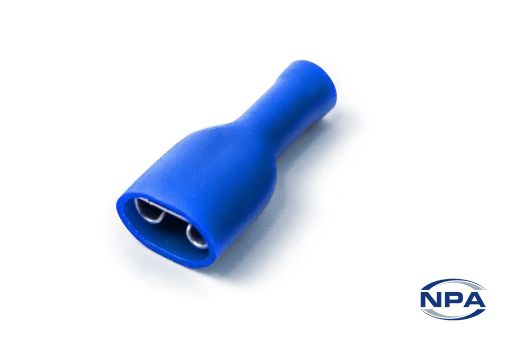

Crimp Connector Quick Connect Blue
